Imada E2P-D Durometer Type Shore D with Peak Indicator, for Hard Rubber & Plastics



Price: $ 345.00

Imada E2 Durometer / Hardness Tester
Accuracy 1 point
Lightweight, durable, recyclable, magnesium-alloy case
Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales

The Imada E2 durometers now feature an environmentally friendly magnesium alloy housing. E2 durometers are quick and easy to operate with a high degree of repeatability. Optional peak indicators are available on each model.

Hardness is an essential characteristic of rubber, elastomers and plastic products. Select the optimum durometer type based upon material hardness. E2 models are available in Durometer Types: Shore A, D, E and Asker C Hardness.


line
Kit Contents
line

  • Imada E2 Durometer / Hardness Tester
  • Calibration certificate traceable to NIST
  • 3-Point
  • Carrying Case


line
Features
line

  • Lightweight, durable, recyclable, magnesium-alloy case
  • Includes 3-Point Calibration certificate traceable to NIST
  • Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales


line
Specifications
line

Accuracy 1 point

line
Durometer Selection
line

ModelScaleIndentor
E2-AShore AFlat point
E2-DShore DCone point
E2-EShore EHemispherical
E2-CAsker CHemispherical

ModelMaterialStandardMeasuring Force
E2-ANormal rubberASTM D-22401 kgf
E2-DHard rubber & plasticASTM D-22405 kgf
E2-ESoft rubberASTM D-22405 kgf
E2-CSoft rubberJIS K-73121 kgf


line
Operation
line

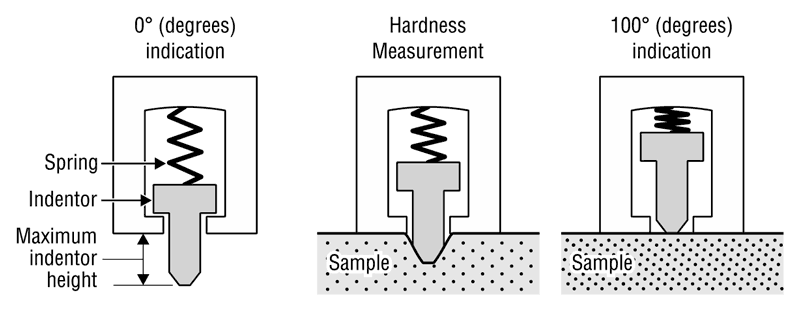

As the durometer is pressed against the sample, the material resistance force and indentor spring load balance. The depth of the indentor is measured, which provides a measure of the materials hardness. Values are based upon a 100 point scale (accuracy 1 point).

However, as time elapses the indicator will "creep" back so that a reading taken a few seconds after the indentor makes contact with the sample will be less than the peak reading. Asker durometers offer a peak indicator as an option to more closely monitor the difference between peak and "creep".


line
Related Products
line

e-1000 e-5000
Durometer Constant Load Stand

  • Provides accurate and repeatable measurements
  • Eliminates operator error
