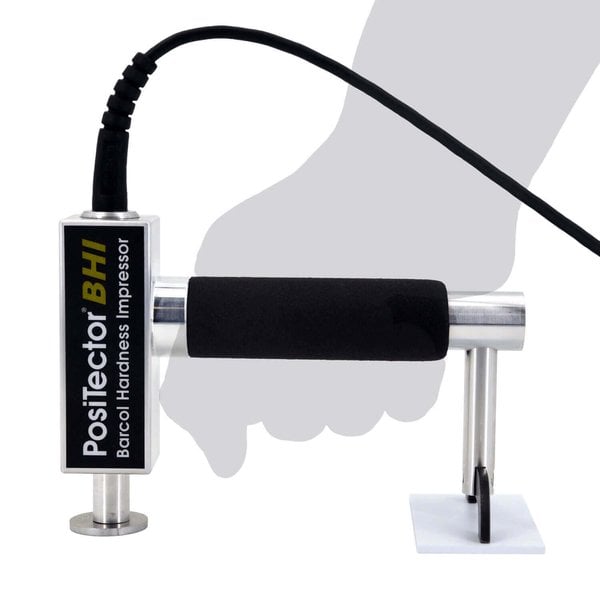

DeFelsko BHI1-G PosiTector BHI Standard Barcol Hardness Impressor

DeFelsko PosiTector BHI Standard Barcol Hardness Impressor

---

Easy-to-read digital display

---

Comparable to 934-1 Barcol Hardness Tester

---

Lightweight, portable device can be used in any orientation

---

The DeFelsko PosiTector BHI Barcol Hardness Impressor measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

• Easy-to-read digital display
• Comparable to 934-1 Barcol Hardness Tester
• Lightweight, portable device can be used in any orientation
• PosiTector interchangeable platform attach any PosiTector probe to a single gage body
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ASTM B648/D2583, DIN EN 59 and AS/NZS 3572.22

Kit Contents

---

The DeFelsko PosiTector BHI1 Standard Barcol Hardness Impressor Kit includes everything needed for testing

Features

---

Simple

• Easy-to-read digital display
• Comparable to 934-1 Barcol Hardness Tester
• User-adjustable measurement time with onscreen countdown

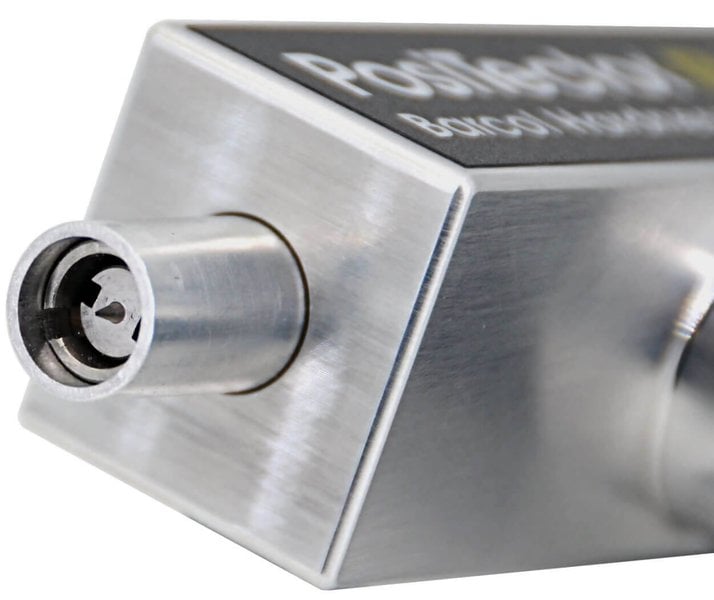

• Includes spare, field replaceable indentor with replacement tool
• Lightweight, portable device can be used in any orientation
• RESET feature instantly restores factory settings

Durable

• Solvent, acid, oil, water and dust resistant - weatherproof
• Shock-absorbing, protectiverubber holster with belt clip
• Hard-shell carrying case included
• Two year warranty on gage body AND probe

Accurate

• Long Form Certificate of Calibration included
• Hi-RES mode increases displayed resolution for use on applications that require greater precision
• Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
• Conforms tonational and international standards including ASTM

Versatile

• PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
• 1 and 2 point calibration options withCal Resetto restore factory settings
• Selectabledisplay languages
• High contrast LCD with backlit display
• Flip displayenables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful

• Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring
• Screen Capture- save screen images for record keeping and review
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• SealedUSB Port for fast, simple connection to a PC and to supply continuous power
• PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Software Updatesvia web keep your gage current
• Software Solutionsfor viewing, analyzing and reporting data
• Every stored measurement is date and time stamped

Standard Model Features

---

Includes ALL features as shown:

• Storage of 1000 readings per probe - stored readings can be viewed or downloaded

Specifications

---

Measurement Range	20 - 100 Barcol
Resolution	0.1 Barcol
Accuracy	2 Barcol
Gauge Body Size	137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
Gauge Body Weight	140 g (4.9 oz) without batteries
Probe Size	145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom	140 mm (5.5")
Probe Weight	400 g ( 14.1 oz)

PosiSoft Suite of Software

---
